Rating:3A 125VAC 1A 250VAC
Contact Resistance:50mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force: 250±100gf
Total Travel:.2.5±0.4mm
Operatong Life:10,000 Cycles Min
Solder specifications:260ofor5 seconds
Operating Temerature:0℃~+85℃
介绍：

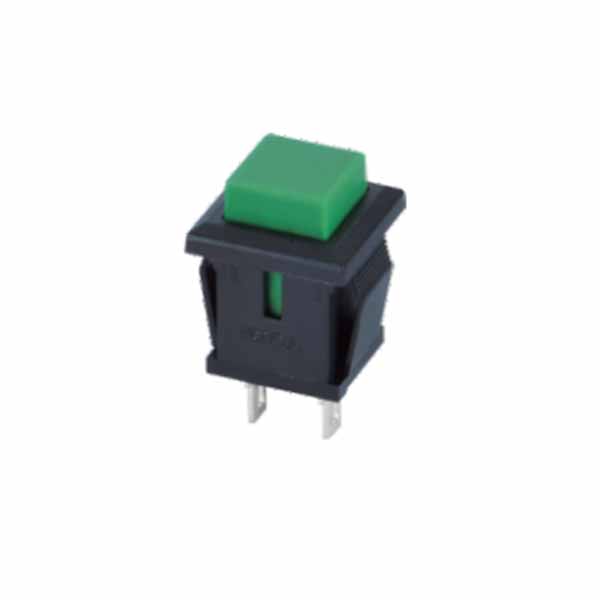

按键开关PB系列，功能有带锁LOCK和复位常开，开孔10~16不等，常于设备仪器，家电产品等
