Contact Rating: 0.2A 250VAC
Electrical Life: 30,000 cycles
Contact Resistance: 50mΩ max.
Insulation Resistance: 100MΩ min.
Withstand Voltage: 1000VAC for 1Minute
Operating Force:500±150gf
Travel:2.0±0.5mm
Function: OFF-(ON) ON-OFF
介紹：

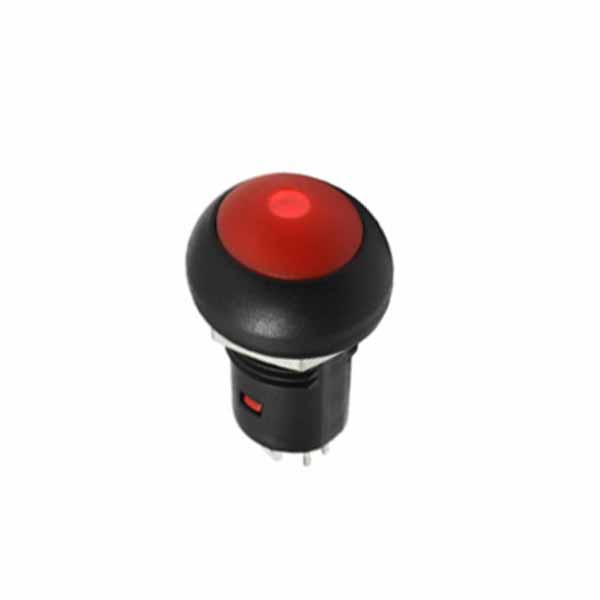

防水（shuǐ）按鍵開關M12係列,小尺寸功能齊全,複位常開、常閉，自鎖式，有防（fáng）水IP65,IP67有配套的防水帽，是（shì）戶（hù）外設備使用之首選
