Rating:3A 125VAC 1.5A 250VAC
Contact Resistance:50mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force:r 150±50gf
Total Travel:.2.0±0.4mm
Operatong Life:10,000 Cycles Min
Solder specifications:260ofor5 seconds
Operating Temerature:0℃~+85℃
介紹：

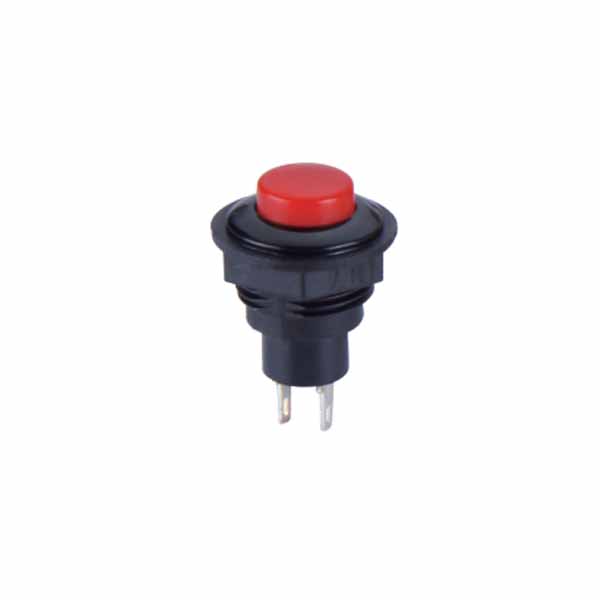

按鍵開關PB係列，功能有帶鎖LOCK和複位常開，開孔10~16不等，常於設備儀器，家電產品等
