Rating:30mA 30VDC
Contact Resistance:50mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force:r 250±50gf
Total Travel:.0.7±0.2mm
Operatong Life:100,000 Cycles Min
Solder specifications:260ofor5 seconds
Operating Temerature:+10℃~+60℃
介紹：

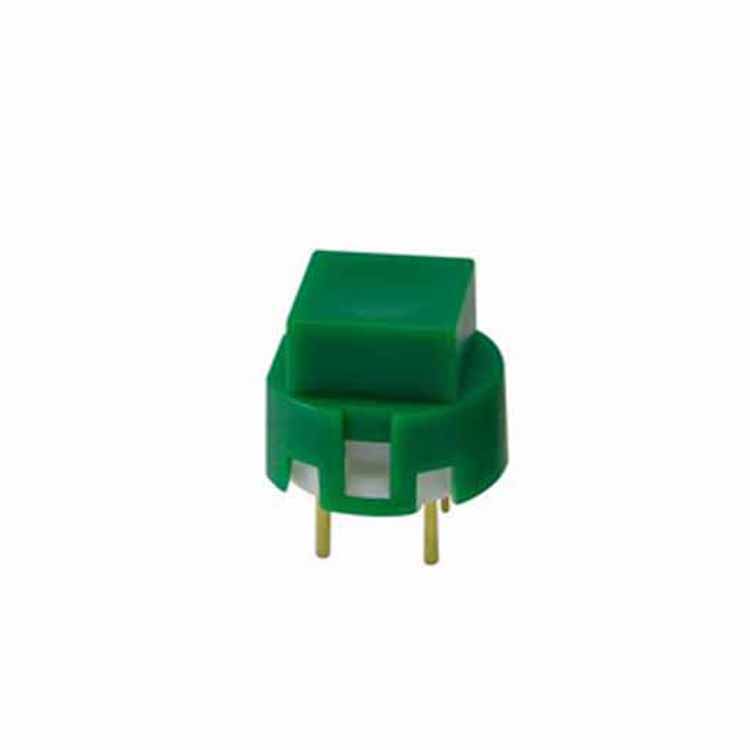

輕觸按鍵開關TS係列，結構簡單、功能簡單，低電壓低電流，在消費類電子產品上很常見的開關。可做帶燈和無燈，按鍵外形有多種結構可選。
